“Can it run Doom?” is a query that we don’t need to ever die. Initially, it was a sensible query; individuals needed to know if a pc had the efficiency essential to run the sport. However even the most affordable computer systems have been capable of run Doom flawlessly for many years now, so the query has advanced right into a tongue-in-cheek question about extra unconventional {hardware}. We’re now to a degree the place virtually all the pieces can run Doom, however the query is extra fascinating after we take into account the best way to show the graphics. Because it seems, you possibly can certainly play Doom on a display screen made from seven-segment shows.
A seven-segment show is, because the identify implies, a show consisting of seven particular person segments (often brief traces). That is the quintessential “digital show,” as it’s so frequent. A single seven-segment show can present the total vary of English alphanumeric characters, however it’s nonetheless fairly rudimentary. If, nevertheless, you organize 1,152 seven-segment shows right into a 48×24 grid, you possibly can show extra complicated graphics. By altering the character proven on every particular person show (or just controlling every section individually), you get one thing like subpixels and successfully improve that decision past the 48×24 base array. However is that sufficient to make Doom playable?

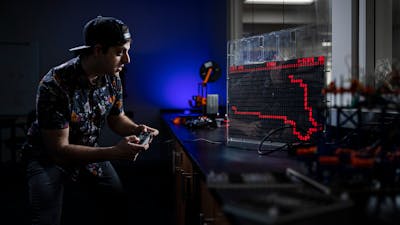

A group from Brigham Younger College’s Community Enhanced Applied sciences (NET) Lab developed the Seven Section Signal, which is the beforehand described display screen made from 1,152 seven-segment shows. A Raspberry Pi 3 Mannequin B+ controls all of these seven-segment shows by means of daisy-chained MAX7219 serial eight-digit show driver chips by way of the GPIO pins. The group doesn’t specify the Seven Section Signal’s max framerate, nevertheless it appears to be able to a minimum of 10FPS.
Evidently their code handles the interpretation of raster graphics into characters for the seven-segment shows by dividing every show into two “pixels” in every axis. It isn’t clear in the event that they wanted to manually outline the graphics entities for Doom, however the result’s that foreground sprites (like enemies) are distinguishable from the background partitions.
Whereas it definitely isn’t an excellent expertise, Doom does appear to be playable on the Seven Section Signal. The graphics are very Spartan — as we’d anticipate — however the sport doesn’t want a lot. Gamers can see hallways and enemies, which signifies that they’ll progress by means of the sport.
The plain subsequent step is for some courageous gamer to set a pace run file in Doom on the Seven Section Signal.
