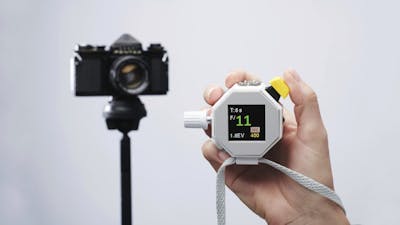

Maker collective VEEB Initiatives has launched the design information and supply code for a useful pictures software, powered by a Raspberry Pi Pico and MicroPython: the Photon incident gentle meter.
“Photon reproduces the among the performance of costlier instruments, utilizing a number of cheap/available elements,” the collective explains of the open-source challenge. “An incident gentle meter might be a necessary software in pictures (particularly movie pictures with previous cameras). The delicate computation baked-in to trendy cameras devotes loads of effort guessing ‘how a lot gentle is falling on the topic?”. When you have the choice of attending to the topic and taking a studying, no guessing is required and the whole lot turns into so much simpler.”
Industrial incident gentle meters might be dear items of kit, however VEEB Initiatives’ model, delivered to our consideration by Raspberry Pi, cuts the associated fee significantly: it makes use of a Raspberry Pi Pico and its RP2040 microcontroller because the driving controller, a low-cost Waveshare 128×128 full-color OLED show, a Pimoroni BH1745 gentle sensor board, a rotary encoder and two momentary switches to drive the consumer interface, and a Pimoroni Pico LiPo Shim to attach the whole lot to a lithium battery for on-the-go use — plus a neat 3D-printed chassis to maintain the whole lot palm-friendly.
“At present it measures ambient gentle brightness, in addition to the purple, inexperienced and blue parts of the sunshine, which could permit white stability readings in future iterations,” the collective writes of the system’s capabilities in its preliminary launch. “There may be soldering concerned, however do not let that put you off, it is simple.”
Examined in opposition to industrial competitors, the Photon reveals off its accuracy. (📷: VEEB Initiatives)
This is not VEEB Initiatives’ first Raspberry Pi Pico-powered creation: the collective has beforehand proven off a “mom” clock system based mostly on “atomic-ish” time, a PID controller to assist construct a greater burger, and an upgraded espresso grinder — whereas in October final yr the group confirmed off a minimalist ePaper show as a Volumio now-playing indicator powered by a Raspberry Pi Zero.
The supply code and design information for the Photon can be found on VEEB Initiatives’ GitHub repository, beneath the reciprocal GNU Normal Public License 3.
