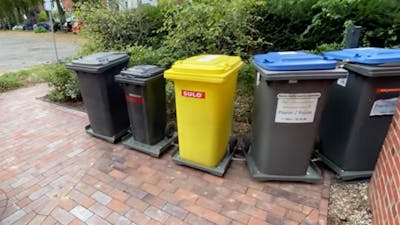

All of us generate a certain quantity of trash, which needs to be tossed into one or a number of bins, then taken to the curb on trash day. After assortment, bins should be retrieved and put someplace out of sight, out of thoughts, till the cycle begins over once more… and time and again. As seen within the video under, Max Maker’s new (and improved over a number of iterations) trash prepare takes care of bin motion duties with the push of a button.
For locomotion and steerage, Max put in a railing system in his facet yard, with gear enamel connected horizontally to at least one part. The engine automobile pushes towards these enamel with a motor and gearbox in a rack-and-pinion setup, permitting it to maneuver forwards and backwards in a dependable and nicely managed method. The engine tows/pushes a collection of trash automobiles, one for every bin, to maneuver into pickup place and again once more
The trash prepare makes use of an Arduino Uno and BTS7690 motor driver for management, together with a collection of relays. Onboard potentiometers present a consumer interface to alter the pace and acceleration. After experimenting with steel proximity sensors, Max settled on mechanical switches triggered by steel protrusions to inform the prepare when to decelerate and cease. When in place, a collection of 5 spring-loaded connectors deal with battery charging duties.
As for its consumer interface, the machine is managed by a easy automobile fob-style RF module. This appears to work nicely, with an exterior antenna carried out to keep away from issues with the prepare’s metallic housing. Max additionally added a pair of lights to the engine automobile, which not solely appears to be like cool, however offers him verification that it did in truth sense the distant sign.
You should definitely try extra construct particulars within the video under!
