The Open Muscle Undertaking Permits Customers to Register Finger Actions with Corridor Impact Sensors




These with mobility or dexterity issues discover wonderful advantages from utilizing assistive prosthetic units. Nevertheless, the very analog nature of a lot of the merchandise on the market can depart customers wanting one thing smarter and extra succesful. That is what impressed the Open Prosthetics workforce to develop their Open Hand and Open Muscle tasks, which purpose to significantly lower the price of prosthetics with out sacrificing performance. Their most up-to-date improvement, the Open Muscle band, precisely detects muscle contractions within the forearm with the intention to management a man-made hand.

Designing the bracelet

The primary and first step in creating the Open Muscle challenge was figuring out the most effective technique for quantifying muscle contractions. Many different approaches which were used prior to now contain inserting electrodes close to sure muscle teams and measuring their electrical exercise. However because of potential interference and noisy information, the workforce as an alternative opted to make use of a extra mechanical system that revolves round spring-loaded pistons and magnets.

Measuring muscle contractions

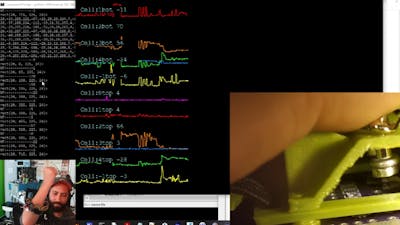

As a result of the magnet can transfer nearer or additional away from the pores and skin based mostly on how a lot the contracting muscle displaces the piston, a Corridor impact sensor just under can measure the change within the magnet’s magnetic discipline. The analog values are then fed from the outputs of every of the 12 Corridor impact sensors into an ESP32’s built-in ADC pins. After being transformed right into a digital format, the information can then be plotted in real-time with a Python-based software.

Processing the information and future plans

Merely having strains on a graph with various depth values doesn’t yield a lot usable info. Due to this fact, the workforce has been engaged on coaching machine studying fashions to correlate the information with finger and hand motions. Ultimately, the aim is to have the aptitude to completely simulate a hand by simply studying the bracelet’s alerts in hopes of controlling a robotic hand. For extra details about the Open Muscle challenge, you’ll be able to learn the workforce’s submit right here on their web site or watch this demonstration video right here on YouTube.
