Sooner or later, all {hardware} engineers get an analysis board for a element. These boards are invaluable for sensors as a result of they provide a fast technique for understanding a sensor’s capabilities. Nonetheless, we are able to all agree that usually eval boards aren’t one of the vital attractive-looking units. So, it’s incredible to see TDK’s SmartBug 2.0. It’s a ladybug-shaped wi-fi module containing TDK’s sensors, together with their newest low-power inertial movement unit (IMU.)

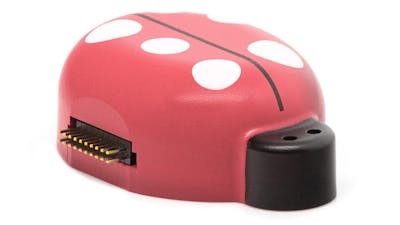

SmartBug 2.0 measures 50 x 36.6 x 18 millimeters. Natively it communicates through Bluetooth Low-Power (BLE) and USB. Nonetheless, Wi-Fi is obtainable with an optionally available add-on board that plugs right into a pin header on SmartBug’s aspect. That very same board additionally provides an SD-Card reader and Ultrasonic sensor.
This cute-as-a-bug analysis platform isn’t TDK’s first. The earlier era SmartBug contained sensors for movement, barometric stress, temperature, and humidity, together with a MEMS magnetometer and an IMU. With Home windows-based software program, it could stream sensor measurements to a PC. Or, with the add-on board, log that very same information to an SD Card.
On the event aspect, SmartBug helps TDK’s Sensor Inference Framework (SIF). This framework means that you can gather IMU sensor information, choose customized options, construct machine-learning fashions, and check their efficiency. As soon as prepared, you may deploy and run the fashions on a SmartBug.
IMU instance from first-generation SensorBug
On the end-user aspect, the Home windows SmartBug software program consists of examples like a sensible door lock, an “air” mouse, and sensor fusion that will help you get began shortly. This identical software program additionally works with SmartBug 2.0. The IMU is the primary distinction between the earlier module and the brand new one.
For SmartBug 2.0, TDK upgraded the IMU to their newer ICM-45686-S. This six-axis MEMS sensor measures a scant 2.5 x 3 millimeters and may draw as little as three microamps in its ultra-sleep mode. TDK charges the present draw at 430 microamps when measuring six-axis motion movement.
The ICM-456xx household of IMUs targets purposes like augmented actuality headsets, optical picture stabilization, wearables, and every other utility that requires gesture or movement monitoring.
And in contrast to each different IMU in the marketplace, the ICM-456xx is available in an analysis module you’ll not wish to debug!
This web page has extra info on the first-generation SmartBug. Subsequent, TDK’s SmartBug 2.0 press launch reveals the variations between the 2 variations. And eventually, this ICM-456xx product temporary has the technical particulars on this ultra-low energy IMU.
