The pc structure first described by John von Neumann in 1945 continues to be the idea for almost all digital computing gadgets we use in the present day. The von Neumann structure consists of a discrete central processing unit and reminiscence unit. As a result of directions and information are saved in a reminiscence unit that’s distinct from the processing unit, they should be moved from reminiscence to the processor earlier than they are often operated on. Because the processor can solely retailer a small quantity of knowledge at any given time, this creates a bottleneck when operating data-intensive algorithms, reminiscent of these utilized in machine studying functions.
If at occasions it looks as if we are attempting to shoehorn machine studying algorithms into platforms that they weren’t designed for, it’s as a result of we’re. Trendy common objective computer systems weren’t designed particularly for one of these algorithm. Nevertheless, due to the facility of recent computer systems, and a few good optimization methods, nice strides have been made in churning by way of even large neural community calculations. However recognizing the mismatch between platform and algorithm, it is smart to take a step again and contemplate if there could also be a greater option to obtain our targets.

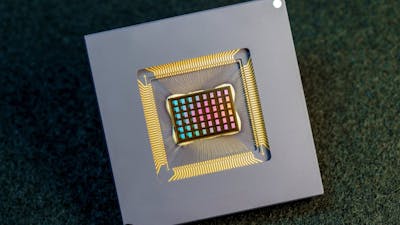

Design and functions of NeuRRAM (📷: W. Wan et al.)
A workforce led by researchers at Stanford College has been giving this downside some thought, and has lately printed the outcomes of their work to develop a greater, extra pure, platform for performing machine studying operations. They’ve developed what they name NeuRRAM, a neuromorphic chip that may run quite a lot of neural community mannequin architectures on-device, and with a excessive diploma of power effectivity. They achieved this by eschewing conventional computational architectures in favor of a compute-in-memory strategy.
NeuRRAM was developed with resistive random-access reminiscence (RRAM), which is a kind of reminiscence that permits computations to happen straight in reminiscence. RRAM shouldn’t be new, nonetheless, earlier implementations have resulted in fashions which have a lowered stage of accuracy, and have given little flexibility in the kind of fashions that the chip can assist. These issues have been addressed in NeuRRAM by introducing a number of ranges of optimizations throughout the abstraction layers of {hardware} and software program. The result’s a single compute-in-memory chip that may run duties as numerous as picture and voice recognition.
It could carry out these duties with a excessive stage of accuracy, as properly. In a collection of validation exams, the workforce discovered NeuRRAM able to attaining 99% accuracy in recognizing handwritten digits. 85.7% accuracy was noticed in a picture classification job, and 84.7% accuracy was achieved when operating a speech command recognition job. These outcomes are similar to what will be achieved with conventional digital compute chips, however with a drastic discount in power necessities.
Micrograph of one of many chip’s cores (📷: W. Wan et al.)
The researchers measured the chip’s power utilization utilizing a metric known as the energy-delay product (EDP). The EDP components in each power consumed, and the time wanted to carry out operations, to summarize the power effectivity of the chip. It was discovered that NeuRRAM achieved as much as 2.3 occasions decrease EDP as in contrast with conventional chips.
At current, the workforce is working to enhance the structure of NeuRRAM and to adapt it to extra algorithm sorts, like spiking neural networks. One member of the workforce, Rajkumar Kubendran, mentioned “we will do higher on the machine stage, enhance circuit design to implement further options and tackle numerous functions with our dynamic NeuRRAM platform.” Maybe we are going to see this chip included into the gadgets we use each day after a few of these enhancements materialize.
