Katie Dumont’s Sensible Christmas Ornament Is an Interactive IoT Snowman Decoration

Final 12 months’s system

In 2021’s Vacation season, element14 Presents host Katie Dumont made a spherical Christmas decoration utilizing a Raspberry Pi Pico board and an ESP8266 for outdoor connectivity. It labored by having the ESP8266 await a brand new message coming from the MQTT dealer after which passing it onto the Pico. From right here, the Pico may set the mode accordingly and alter the sunshine sample being displayed.

A number of upgrades

For 2022, nevertheless, Dumont realized that her challenge might be made much more compact by swapping out the separate Raspberry Pi Pico and ESP8266 for a single Raspberry Pi Pico W board as a substitute. The built-in Wi-Fi permits the RP2040 chip to speak instantly with the wi-fi community moderately than counting on the ESP8266 to go messages. Along with this modification, she additionally wished to switch how the consumer interacts with the decoration by swapping the sunshine sensor for a passive infrared (PIR) sensor to detect when an individual enters the room. Lastly, the present connector would get replaced by a extra sturdy one that may assist the burden of the decoration.

Designing the circuit

The schematic Dumont designed options three predominant zones of LEDs. The primary is the hat, which is comprised of 11 WS2812B NeoPixel-style LEDs that may illuminate in quite a lot of colours and brightnesses with only a single pin. Beneath that is the face with is made up of twelve complete LEDs which are both blue, crimson, or orange relying on their placement. Final of all are the 42 white LEDs organized in a collection of concentric rings on the snowman’s base. Every LED, excluding the NeoPixels, is pushed by a MOSFET linked to a PWM pin for controlling the brightness. In the meantime, the Pico W board itself and the PIR sensor are mounted to the again.

Some small points

After the PCBs arrived from the fabricator, Dumont set to work assembling one utilizing a mix of solder paste and a hotplate. Nonetheless, she quickly realized that the PIR sensor’s footprint had the mistaken orientation, that means the output pin was on the mistaken aspect. Moderately than ready for brand spanking new PCBs to reach, she determined to 3D print a small cylinder that would disguise bodge wires internally whereas nonetheless holding the general design clear.

The code

This system for this IoT snowman decoration shares a number of issues in frequent with the unique decoration. Particularly, it depends on MQTT to subscribe to a central message dealer by way of three matters that management its present mode, top-hat shade, and total brightness. Along with these, the Pico additionally publishes its personal PIR sensor state worth in order that it may be learn by different gadgets for a extra detailed image of the room.

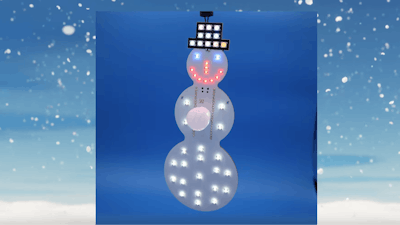

Introducing the MQTT snowman

As a result of the earlier connectors have been too weak to assist a dangling decoration, Dumont changed them with a set of Molex Squba connectors which have much more energy. Values could be set by clicking one in all many digital buttons in a Node RED webpage. For example, the white LEDs could be toggled between totally off, totally on, flashing, or a random sample. To see this challenge in additional element, you may watch this Element14 Presents video right here on YouTube.
