Automate Protected Cracking with an ESP8266 and a Stepper Motor



Why construct a secure cracking robotic?

YouTuber Zach Hipps, creator of the Byte Sized Engineering channel, has a brother-in-law who positioned his secure’s mixture code into the secure shortly earlier than happening trip. Nonetheless, upon returning again residence, he realized he had forgotten the code and had no approach of retrieving it, even after contacting the producer. To try to resolve the issue, Hipps had the thought of creating an automated secure cracking gadget from scratch that might run by way of all million doable mixtures to get the proper one, ultimately.

Mechanical design

After performing some analysis about numerous sorts of secure cracking robots, Hipps stumbled upon a video from the Lock Choosing Lawyer, which options the ITL-2000 — a robotic that may mechanically enter the code by twisting the dial till the three inside rings align to unlock the secure. With the intention to enhance on the design and make it extra suitable with different dials, Hipps replicated the vertical stepper motor placement however changed the chuck with a variably-sized clamping mechanism. By doing this, injury to the secure is minimized whereas concurrently making it a really transportable gadget.

The parts

Shifting the dial with repeatable and superb precision necessitated the usage of a stepper motor. Moreover, as a result of the dial stops when the proper mixture has been entered, the microcontroller must know when the motor can now not transfer. Because of these issues, Hipps went with a PD57-2-1076 stepper motor because it has excessive torque and incorporates an built-in motor driver that may additionally sense stalls. Controlling the whole lot is an Adafruit ESP8266 Feather together with a stackable OLED display for viewing motor debugging knowledge.

Dealing with motor stalls

The stepper motor’s built-in Trinamic driver has an accompanying software program package deal for setting sure parameters on a PC and sending them to the motive force over UART. After tuning the configuration, the load worth could possibly be seen in real-time by Hipps inside the software program, with a decrease worth similar to the next load being positioned on the motor’s shaft, and a zero indicating an entire stall. He then arrange the ESP8266 to observe this worth, show it on the display, and cease sending motion instructions on the precise second a zero seems.

Wiring and assembling the gadget

The 3D-printed adjustable chuck acts in a similar way to a screw clamp, whereby turning the threaded rod will transfer every jaw both inwards or outwards relying on the course. As soon as hooked up to the stepper motor by way of a coupler, Hipps related the ESP8266 to the stepper motor driver by way of the 2 UART pins for sending instructions and receiving the load worth. Lastly, he additionally included a digital logic analyzer for extra superior debugging if wanted.

Preliminary exams

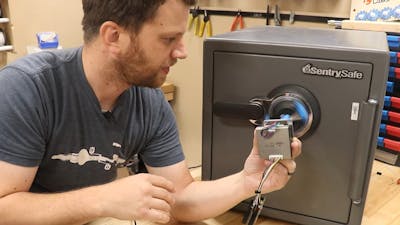

To see if his creation would work as supposed, Hipps discovered a secure just like the one within the Lock Choosing Lawyer’s video and clamped the auto-dialer’s chuck across the dial. From right here, he held the stepper motor whereas the dial turned repeatedly in line with a preprogrammed mixture to make sure the whole lot would align accurately. Partly two, he plans on constructing a body for better stability and modifying the code for higher efficiency. You may watch his construct log video right here on YouTube for extra info.
